KEL-BES-S 24
| Part No. | 51522 |
| EAN | 4251269316609 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
-
Products
?
Brush cable pass-through
?

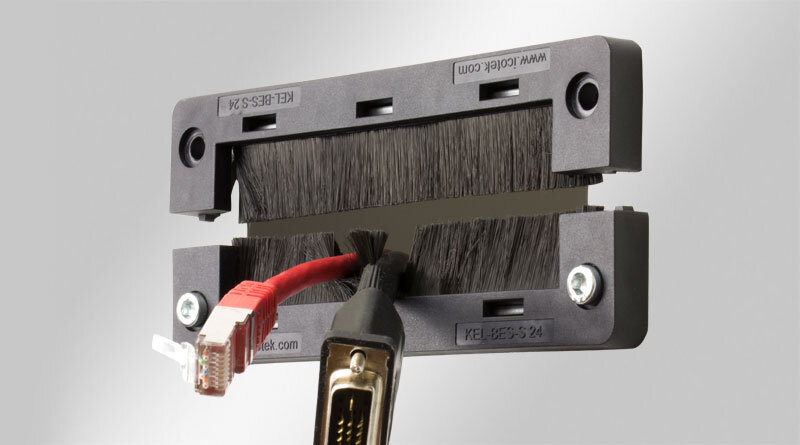

KEL-BES-S | Split brush plate
KEL-BES-S | Split brush plate
for cable pass-through
Split brush plates KEL-BES-S for routing cables into server racks, control panels and electrical enclosures. KEL-BES-S is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres.
The brush plates can either be mounted via screws or via expanding rivets. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
The KEL-BES-S frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors.
Specifications
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -20 C° to 90 C° |
| Material | Polyamide Brushes: Polyamide |
| Mounting options | Screw type mounting, Riveting |
| Properties | silicone free, halogen free |
Advantages & benefits
- Fast and easy assembly
- Subsequent assembly possible
- Versatile utilisation
- Allows reduced airflow while filtering out dust, hair and larger particulate matter
- Visual screening
- Protects cables against wear due to sharp edges of the cut-out
Product types & sizes
KEL-BES-S 24 with expanding rivets
| Part No. | 51522.002 |
| EAN | 4251269320705 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 147 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
KEL-BES-S 16
| Part No. | 51521 |
| EAN | 4251269316593 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 120 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
KEL-BES-S 16 with expanding rivets
| Part No. | 51521.002 |
| EAN | 4251269320699 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 120 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
KEL-BES-S 10
| Part No. | 51520 |
| EAN | 4251269316586 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 100 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
KEL-BES-S 10 with expanding rivets
| Part No. | 51520.002 |
| EAN | 4251269320682 |
| Package quantity | 10 |
| Mounting options | Screw type mounting, Riveting |
| Length | 100 mm |
| Width | 58 mm |
| Height | 10 mm |
| Mounting height | 10 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
